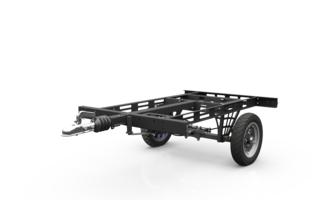

AL-KO CarryNex 250
AL-KO CarryNex chassis come braked and assembled.
Product features:
- Handbrake: Ensures safe trailer parking
- Braked version: Increases safety when driving
- Axles with rubber suspension: For a stable and safe driving response
- Robust and high-quality construction method with a permissible gross weight (GA) of up to 250 kg
- Lightweight construction: Reduces the total weight to 50 kg
- Cataphoretically coated frame parts
- Long service intervals: Thanks to the tried-and-tested drum brake and high-quality overrun device
- Set-up tailored to the customer: Customizable length and width for specific needs
- AL-KO Technology: Uses proven components and technology
- Transport of Euro pallets: Enables flexible use
Scope of delivery
- Rubber-sprung axle with homologated wheel brake (type PER 135)
- Overrun hitch
- Type-approved AK 7 ball coupling
- Parking brake
- Deflection mechanism
- Frame parts
- Tires
Approvals and authorizations
Type-approved PER 135 wheel brake and AL-KO AK 7 ball coupling
Technical data
| Chassis version | Central axle trailer |
| Perm. gross weight | 250 kg |
| Total weight | 50 kg |
| Loading area LxW | 1330x950 |
| High loading edge | 480 |
| Hitch height | 440 |
| Handbrake system | Gradient up to 10% |
| Overrun brake | Comfort function, without ECE type approval as not yet required by law |
| Max. speed | 25 km/h |
| Towing vehicle | Pedal-powered vehicles |
